Where in the World Is Carbon Dioxide? The Potential Impact of Rising Levels of Carbon Dioxide on U.S. Forests

Most scientists think that evidence from different studies shows that our global climate is changing in many ways, such as getting warmer, more rain falling in shorter amounts of time, and more drought. The scientists in this study used mathematical formulas to study what kind of impact these changes in the Earth’s climate might have on vegetation.

Note: In earlier Natural Inquirer articles like this one, the Discussion section is called "Implications."

Where in the World Is Carbon Dioxide? The Potential Impact of Rising Levels of Carbon Dioxide on U.S. Forests

Meet the Scientists

Linda Joyce

Quantitative Ecologist

Richard Birdsey

Thinking About Science

Do you think that the climate of the Earth is changing? When scientists first reported that they had scientific evidence to show that the Earth’s climate is changing, many scientists were skeptical. This is a normal reaction of scientists to new discoveries. Scientists check the accuracy of new scientific discoveries by questioning each other.

One way they question each other is to do more research that may or may not support the other scientist’s findings. Science is a process of learning. When something new is discovered, it can take many years before the discovery is widely accepted as being true or false.

Thinking About the Environment

Can you guess what forests have to do with carbon dioxide in the atmosphere? Plants use photosynthesis to take carbon dioxide from the air and turn it into complex carbohydrates, which are part of the chemical makeup of plants. When a plant dies, the carbon in the plant goes into the soil or returns as carbon dioxide to the atmosphere. When large areas of forests burn, the carbon in the leaves, branches, and roots is released as carbon dioxide into the atmosphere. For green plants to take up carbon through photosynthesis and release carbon back into the atmosphere are normal processes.

When plants are growing and photosynthesis is greatest, the plants are absorbing the greatest amount of carbon dioxide from the air. The plants store the carbon dioxide in their leaves and wood, reducing the amount of carbon dioxide in the atmosphere. This reduction can be seen in the amount of carbon dioxide in the atmosphere
measured over Hawaii from 1959 to 1998 (figure 1).

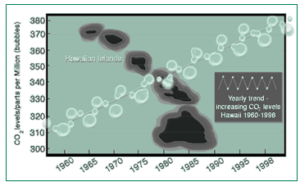

Graph showing hawaii and the amount of carbon dioxide in the atmosphere — **Figure 1**. Amounts of carbon dioxide in the atmosphere over Hawaii.

The burning of coal, oil, and natural gas, and the clearing of forests around the Earth has increased the amount of carbon dioxide in the atmosphere. You can see the rising amount of carbon dioxide in the figure. The levels of carbon dioxide in the atmosphere are now higher than they have been for at least 400,000 years.

Introduction

Most scientists think that evidence from different studies shows that our global climate is changing in many ways, such as getting warmer, more rain falling in shorter amounts of time, and more drought. These scientists have studied the past climate by analyzing weather observations that have been collected over a long period of time.

Other scientists are studying the possible ways that climate could continue to change over the next 100 years by using mathematical formulas that run on computers. The scientists in this study used mathematical formulas to study what kind of impact these changes in the Earth’s climate might have on vegetation.

Reflection Section

Method

The scientists focused on 10 types of vegetation in the United States (table 1 and figure 2).

Type of Vegetation	Description	Location in the United States
A. Tundra	Permanently frozen soils with shrubs, mosses, grasses, and lichens.	Above the Arctic Circle in northern Alaska
B. Taiga-Tundra	Cold or frozen soils. Contains mosses, grasses, lichens, dwarf shrubs, and short, herb-like plants.	Near the Arctic Circle in northern Alaska, and also in the highest mountain areas of the Western United States
C. Boreal (coniferous forest)	Contains few tree species, such as spruce, fir, cedar, hemlock, and pine that can live in intense winter cold and drought. Contains a few broadleaf species, such as aspen and birch.	Just south of the arctic taiga-tundra in northern Alaska, and in the mountain areas of the Western United States
D. Temperate (evergreen forest)	Contains large coniferous trees such as Sitka spruce, Douglas fir, and redwoods.	Along the northwest U.S. coast from Canada to northern California
E. Temperate mixed forest	Contains some broadleaf deciduoustrees, such as oak, hickory, maple, poplar, beech, and sycamore; and some coniferous evergreen species.	Throughout the Eastern United States to the area of the great plains
F. Tropical broadleaf forest	Broadleaf forest that grows where it is hot and there is a lot of rainfall. Contains some deciduous trees and some evergreens.	Puerto Rico, the U.S. Virgin Islands, and Hawaii
G. Savanna woodland	Contains scattered shrubs and small trees.	Central United States
H. Shrub woodland	Contains dense cover of evergreen shrubs. May also contain a few trees that can live with little water, such as pines and scrub oak.	Mostly flat areas of the mountainous Western United States and the Southwest
I. Grasslands	Tall-grass, mixed-grass, and short-grass prairies that contain mostly grasses.	Central United States plains, Southwest United States, and flat areas of the mountainous Western United States
J. Arid lands	Desert lands, with warm to cool temperatures and low amounts of rainfall. Vegetation includes cacti and other plants that require little rainfall.	Southwestern United States and southern California

A mountain area with a grassy field — **Figure (2a)**. Tundra vegetation. National Park Service photo.

Grassy valley with mountains in the back — **Figure (2b)**. Taiga-Tundra vegetation. National Park Service photo.

Coniferous tree with mountains in the background — **Figure (2c)**. Boreal coniferous forest. Forest Service photo.

Redwood trees — **Figure (2d)**. Temperate evergreen forest. Forest Service photo.

Different types of trees in a forest — **Figure (2e)**. Temperate mixed forest. Adobe Stock photo.

A forested area with many trees and other plants on the forest floor — **Figure (2f)**. Tropical broadleaf forest. iStock photo.

Scattered small trees — **Figure (2g)**. Savanna woodland vegetation. National Park Service photo.

A mountain with small shrubs on it — **Figure (2h)**. Shrub woodland vegetation. Forest Service photo.

Grasslands with tall grasses and flowers — **Figure (2i)**. Grasslands vegetation. Forest Service photo.

Cactus and other arid plants — **Figure (2j)**. Arid land vegetation. Forest Service photo.

Information that described the environmental conditions needed by each type of vegetation were entered into a computer program. An example is the number of inches of rainfall needed over 1 year. Other environmental conditions included hot and cold temperature limits. Then, numbers representing higher temperatures and changes in rainfall and snowfall were put into the formulas in place of the current amounts.

The results from these new environmental conditions described how possible climate change might cause vegetation to change across the United States. For example, in one formula the average temperature for the United States was increased by 4 °C by the year 2100. The mathematical formulas predicted what kind of vegetation would grow in each area of the United States, if everything was the same as it is now except for the temperature and the amount of rainfall and snowfall.

Reflection Section

Findings

The mathematical formulas predicted that boreal forests and taiga-tundra vegetation will move northward and upward in elevation, and the southern areas of current boreal forests will die. For example, the boreal forest that now grows in Minnesota was predicted to disappear if the climate gets warmer. Forests in the Pacific Northwest and the Southeast will initially expand in size, then get smaller. This is because the increased amount of carbon dioxide will at first enable the trees to absorb more carbon dioxide and carry out more photosynthesis.

If the temperature rises and the pattern of rain and snow fall changes, some trees would die from too little water. The large temperate mixed forest would break up into many smaller areas because of a lack of water in some areas. Many of the trees would die, leaving vegetation of a few trees and many grasses. In the Southwest, rainfall was predicted to increase. If that happens, the amount of arid land would shrink, and the area of grasslands would increase (figure 3).

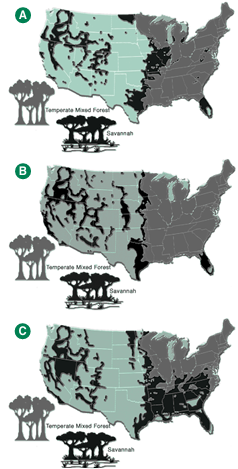

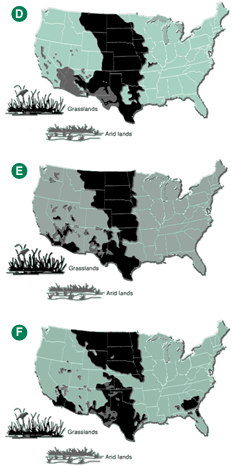

Maps of the U.S. with current location of the vegetation types across 48 states and the different possible future climates.

Reflection Section

Implications

Although the mathematical formulas predicted changes in United States vegetation, the scientists said that the results must be considered with caution. First, these climate futures are possible futures and the actual future climate may be different. It may not be as warm or it may have more rainfall than predicted. Second, the predicted amount of carbon dioxide in the atmosphere may not be correct. Third, other effects, such as the pattern of rainfall and snowfall, may not happen the way the formulas predicted. Many other things might happen that the computer model could not predict.

The scientists suggest that there are things we can do today to lower the amount of carbon dioxide going into the atmosphere. For example, we could turn some of our poorer crop land and pasture land into forests. Forests absorb a lot more carbon dioxide than crop or pasture land. We could minimize the amount of forests that we are cutting down for other uses, such as for agriculture or for building homes and businesses. We can continually improve the way we take care of the forests that we have. We can recycle more paper and wood products, and we can plant more trees in urban and suburban areas.

Reflection Section

From: Joyce, Linda A.; Birdsey, Richard, technical editors. 2000. The impact of climate change on America’s forests: A technical document supporting the 2000 USDA Forest Service RPA Assessment. Gen. Tech. Rep. RMRS-GTR-59. Fort Collins, CO: USDA Forest Service, Rocky Mountain Research Station. 133 pp
