Under Where? Underground Water and Its Contribution to Streams

When snow melts or rain falls, some of the water runs off into streams or rivers. Most of the water, however, goes down into the soil. The water that stays close to the soil's surface flows laterally and down hillsides. Scientists in this study wanted to know how much this soil water, compared to other sources of water, contribute to stream flow in certain areas. They also wanted to know how levels of snowfall affect groundwater's contribution to stream flow.

Under Where? Underground Water and Its Contribution to Streams

Meet the Scientists

Fengjing Liu

Hydrologist

Carolyn Hunsaker

Ecologist

Roger Bales

Engineer | Environmental Scientist

What Kinds of Scientists Did This Research?

Ecologist: This scientist studies the relationship of living things with their living and nonliving environment.
Environmental engineering scientist: This scientist combines biological, chemical, and physical sciences with the field of engineering to protect and restore the natural environment.
Hydrologist: This scientist studies the distribution, movement, and quality of Earth’s waters

Thinking About Science

Chemistry is a useful science tool. Environmental scientists can use chemistry to discover how water flows in an ecosystem. In this study, the scientists wanted to understand how much water in a particular stream began as rainfall or snowfall. They also wanted to know what percentage of the stream’s flow came from various locations.

The scientists knew that atoms of the same element can have different atomic weights. Different atomic weights are like a signature that helps scientists identify the atom. The scientists also knew that atoms can gain or lose electrons, resulting in a positive or negative charge. This gain or loss creates different chemical compounds, such as calcium or fluoride. These chemical compounds may dissolve in water, but they remain intact as chemical compounds. By testing the water in many places where it enters the ground, and then where water flows in the stream below, scientists can identify where the streamwater originated.

Thinking About the Environment

The water cycle describes the movement of water from Earth, to the atmosphere, and back (figure 1). You can see the water cycle at work in rainfall and snowfall, in rivers and streams, and in the oceans. You can observe evaporation by watching water slowly disappear from a wet roadway.

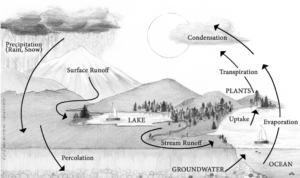

An illustration of the water cycle — **Figure 1**. The water cycle. Illustration by Stephanie Pfeiffer.

You cannot, however, see one mysterious part of the water cycle. Much of Earth’s precipitation moves into the soil, and, without your noticing, it flows underground as groundwater (figures 2, 3, 4a, 4b, and 5). This water can surface quickly or stay underground for thousands of years.

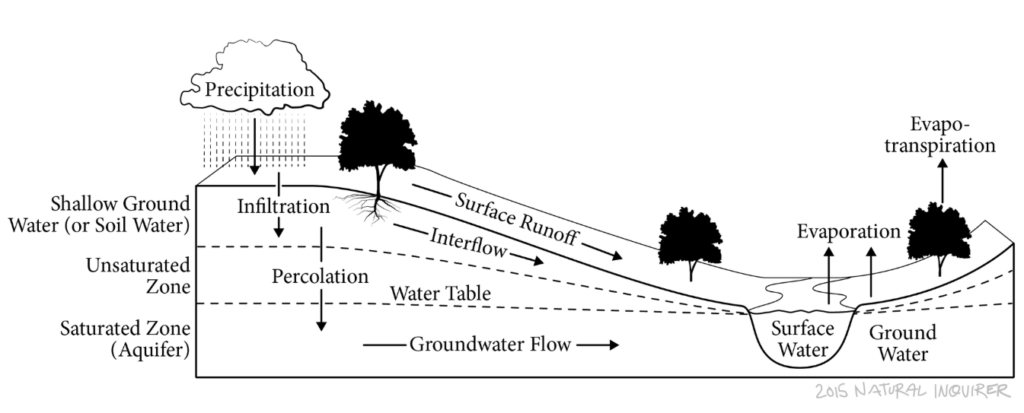

An illustration of how water moves underground during the water cycle — **Figure 2**. Water moves underground as part of the water cycle. Notice that some water stays near the soil surface. This shallow groundwater, or soil water, may be a few feet deep or up to 20 feet deep
below the soil surface. Deeper underground water is called deep groundwater or just groundwater.
Illustration by Stephanie Pfeiffer.

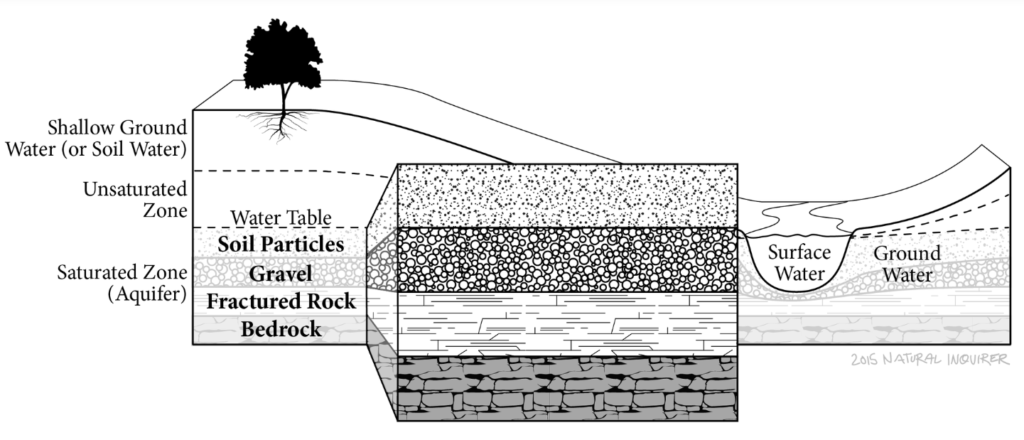

An illustration showing how groundwater fills the spaces between soil particles and fractured rock underground. — **Figure 3**. Groundwater fills the spaces between soil particles and fractured rock underground. Notice that below the water table, all openings between soil particles and rocks are full of groundwater. Above the water table, some water, held by molecular attraction, may surround particles and rocks. Illustration by Stephanie Pfeiffer, adapted from the Groundwater Foundation and the U.S. Geological
Survey.

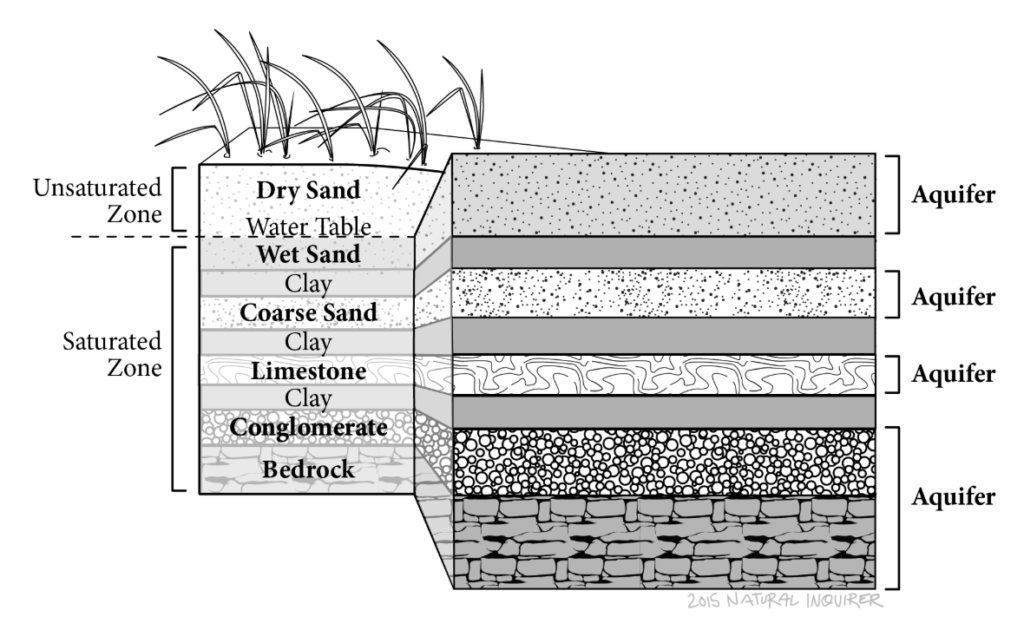

An illustration showing a coastal aquifer — **Figure 4a.** Aquifers are natural underground water storage areas. This is an illustration of a coastal aquifer. Illustrations by Stephanie Pfeiffer.

An illustration showing a mountain area aquifer — **Figure 4b.** Aquifers are natural underground water storage areas. Coastal aquifers (4a) are
different than aquifers found in hilly or mountainous areas (4b). Illustrations by Stephanie Pfeiffer.

Underground water comes to the surface naturally through artesian wells, springs, and through seepage to streams and rivers. People bring groundwater to the surface by digging wells that pump water upward for their use. People use groundwater for irrigation, livestock, mining, public use (such as public swimming pools or water in public buildings), and individual household uses. Surface water, such as water in reservoirs, streams, rivers, and lakes, is also used for a variety of similar purposes. Plants use the water in the top several feet of soil for growth. This water is called shallow groundwater, or soil water.

A map showing the primary aquifers of the United States

Introduction

When snow melts or rain falls, some of the water runs across the ground’s surface to nearby streams and rivers. This water movement is called surface flow. Much of the water, however, goes into the soil, and then seeps downward due to the force of gravity. The entrance of water into the soil is called infiltration, and the downward flow is called percolation (pər kə lā shən). Some of the water stays in the soil near the soil’s surface, instead of percolating. This soil water flows laterally and down hillsides, especially in small, steep, forested watersheds called catchments (figure 6). This shallow underground water flow is called interflow. (See figure 2 in “Thinking About the Environment.”)

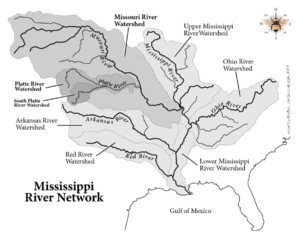

An illustration of the Mississippi river network — **Figure 6**. Smaller watersheds may be contained within larger watersheds. The scientists in this study were interested in very small, steep, forested watersheds in the Sierra Nevada of California (**figures 7 and 8**). These small watersheds are called catchments. Illustration by Stephanie Pfeiffer.

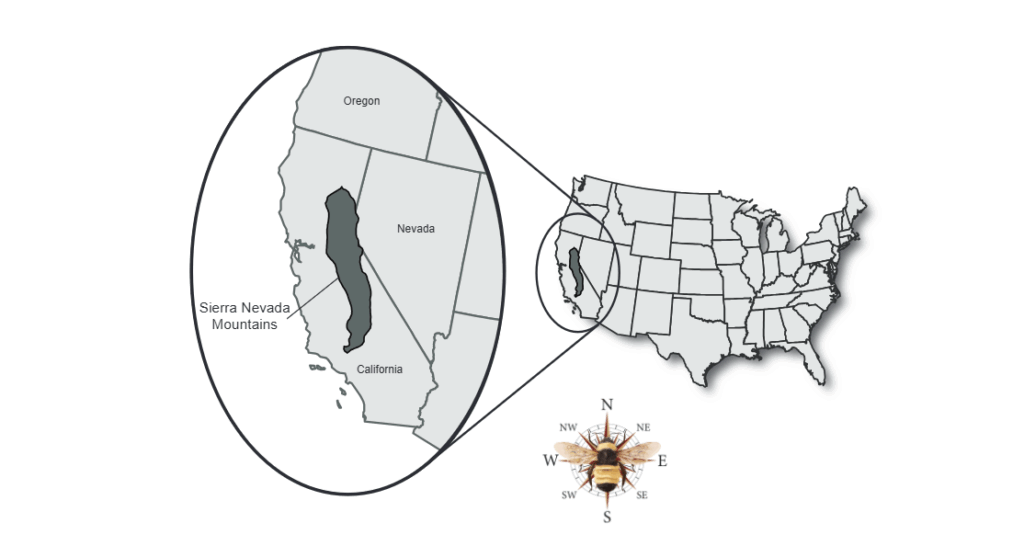

A map highlighting the Sierra Nevada mountain range in California — **Figure 7**. The Sierra Nevada is a mountain range in California. Map by Carey Burda.

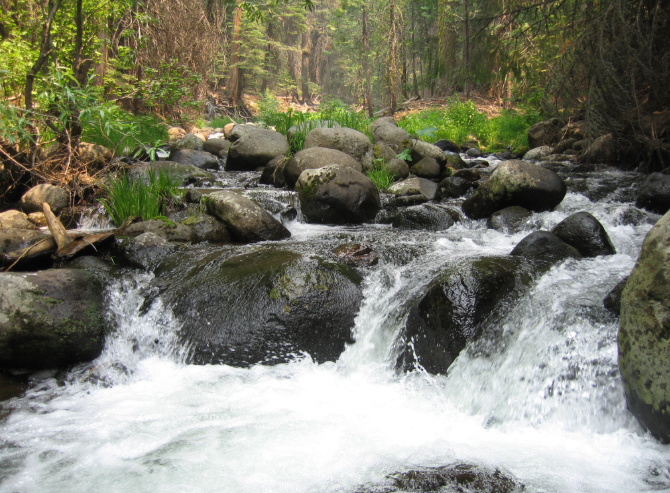

A rocky mountain stream — **Figure 8**. The Sierra Nevada has steep, forested slopes and clear mountain streams. Photo courtesy of the Forest Service, Region 5.

Snow is the main source of water in some of these catchments. These catchments are at higher elevations, where snow occurs more frequently (figures 9 and 10). In catchments at lower elevations, rain is the main source of water. As the global climate becomes warmer, the percent of total precipitation falling as snow will become less at these higher elevations.

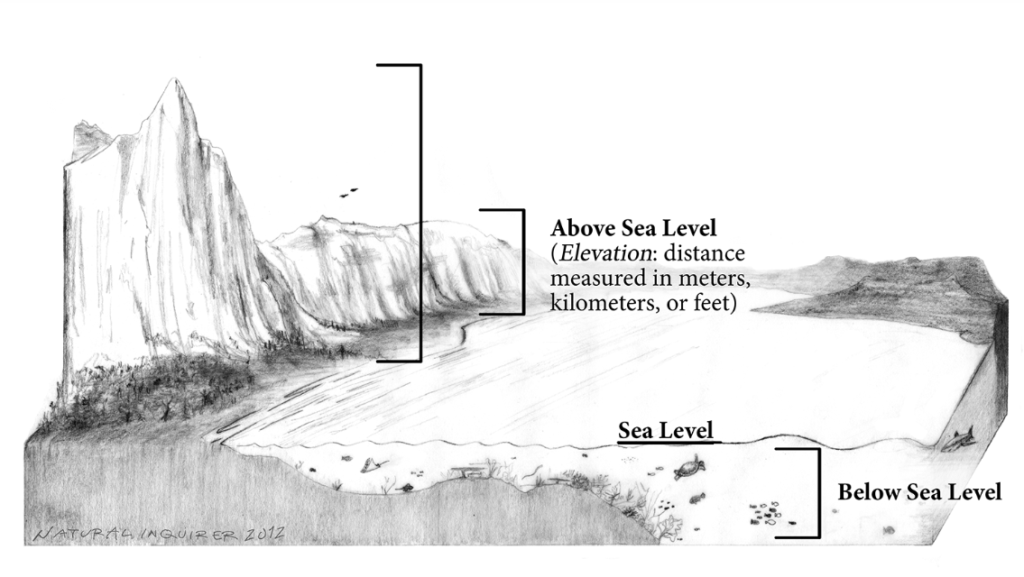

An illustration of above and below sea level — **Figure 9**. Elevation is a measure of the height above the level of the sea.
Illustration by Stephanie Pfeiffer.

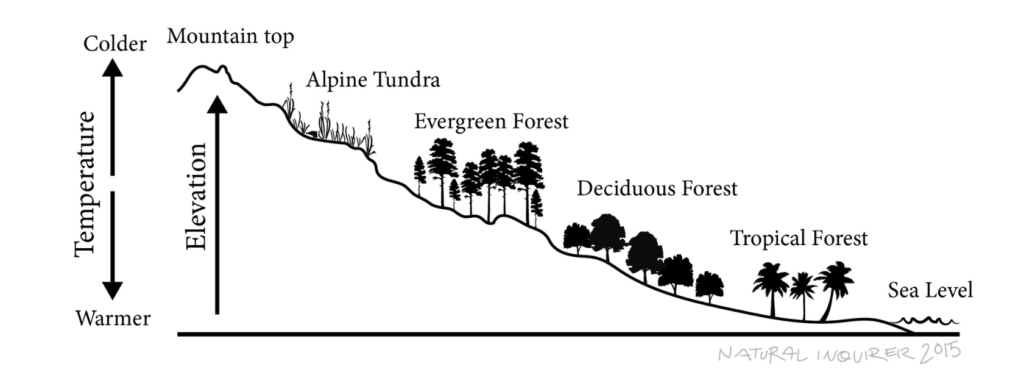

AN illustration showing how higher elevations experience colder temperatures — **Figure 10**. As elevation increases, an area’s climate gets cooler and snow may fall often in the winter months. Illustration by Stephanie Pfeiffer.

The scientists in this study wanted to answer the following questions: (1) How much does soil water, compared with other water sources, such as rapid snowmelt, rainfall runoff, and groundwater, contribute to streamflow in these catchments? (2) Could underground water’s contribution to stream flow change as less snow falls in higher elevation catchments?

Reflection Section

Methods

The scientists studied eight catchments in the Sierra Nevada. In particular, they studied catchments within the Kings River Experimental Watersheds. This area has been set aside especially to investigate watershed ecology in the Sierra National Forest in California (see figure 7). Four of the catchments were at high elevations in the mountains, and four were located at lower elevations (table 1).

Table 1

Table 1. Characteristics of the catchments studied by the scientists.
Watershed Name	Elevation Range (in m)	Size Range (in km2)	Percentage of Precipitation as Snowfall	Percentage of Precipitation as Rainfall	Average Annual Air Temperature (in °C)
Providence (four catchments)	1,479–2,113	0.49–1.32	20	80	7.8
Bull (four catchments)	2,055–2,490	0.55–2.28	75-90	10-25	6.8

The scientists collected water samples from the streams at each of the streams’ outlets within each catchment (figures 11 and 12).

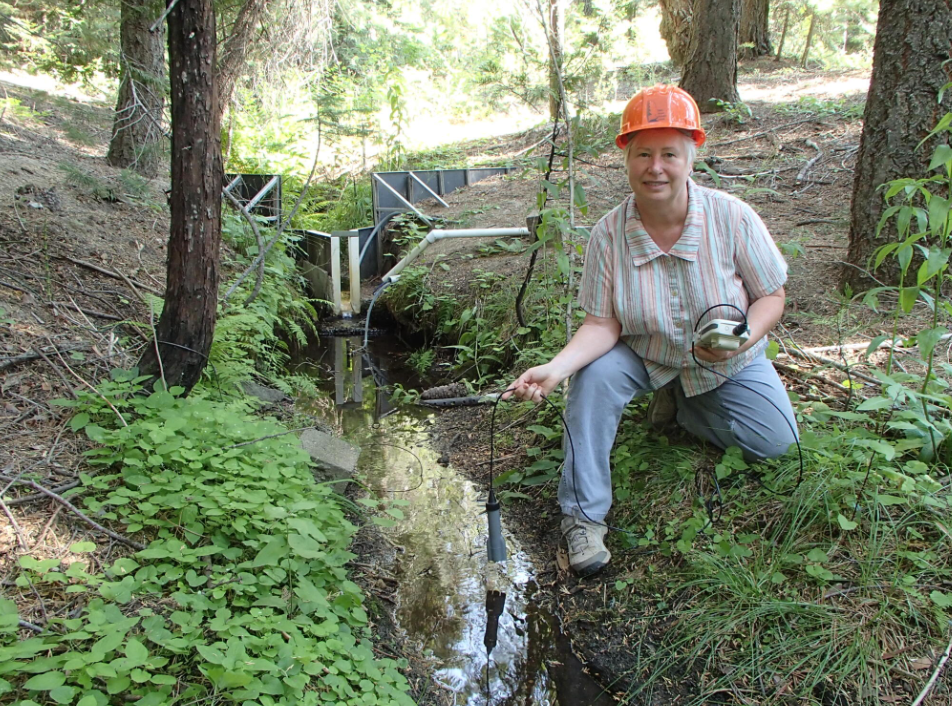

Dr. Hunsaker testing the water acidity, temperature, and amount of dissolved sunstances in a stream — **Figure 11**. Dr. Hunsaker holds an instrument that measures water acidity, water temperature, and the amount of dissolved substances in a stream within the Kings River Experimental Watersheds. A flume sits in the stream behind her. The flume creates a uniform streamflow so that scientists can measure the amount of water flowing in the stream. Solar-powered instruments automatically
measure and record the amount of streamflow
every 15 minutes. Photo courtesy of Dr. Carolyn
Hunsaker.

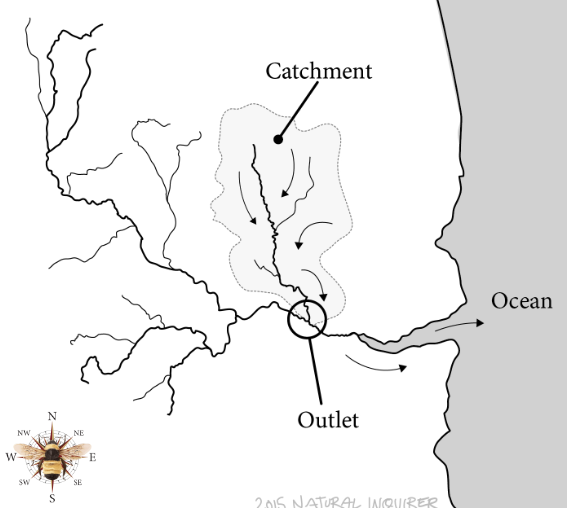

An illustration of a catchment and streamflow — **Figure 12**. All streamwater flowed to one stream outlet in each catchment. Illustration by Stephanie Pfeiffer.

How Do You Convert the Characteristics of the Catchments to the U.S. Imperial System?

They collected these samples every other week from the fall of 2003 until the fall of 2007. The scientists collected soil water samples using pumps at depths of 13 cm and 26 cm into the soil (figure 13).

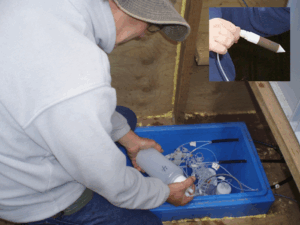

A scientist preparing a vacuum pump — **Figure 13**. This scientist is preparing vacuum pumps that enable him to collect soil water. The tip shown in the inset is inserted into the soil to collect the water. Photo courtesy of Dr. Carolyn Hunsaker.

These samples were taken upslope from the streams and at various locations throughout each catchment. The scientists collected snowfall samples using plastic bottles with funnels (figure 14).

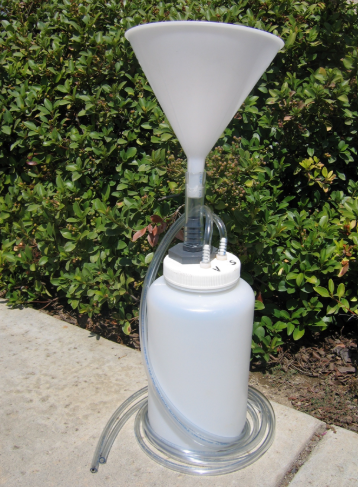

A snowmelt sampler — **Figure 14**. This snowmelt sampler is used to collect snowmelt. These samplers are buried in the soil up to the base of the funnel. An air line and a sample line are connected to the funnel. When it snows and the snow melts, the water sample is pumped out by hand. Photo courtesy of Dr. Carolyn Hunsaker.

They installed these plastic bottles before winter and collected the melted snow water every other week after snowfall (figure 15).

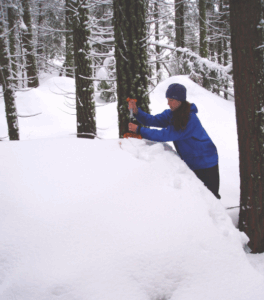

A scientist pumping snowmelt into a sampler — **Figure 15**. This scientist is pumping the
snowmelt out of the sampler. Photo courtesy of Dr. Carolyn Hunsaker.

The scientists collected 2,239 streamflow, snowmelt, soil water, spring water, and groundwater samples (table 2). The scientists analyzed all the samples to determine which
chemical compounds, and how much of each chemical compound, each sample contained scientists analyzed all the samples to determine which chemical compounds, and how much of each chemical compound, each sample contained.

Table 2. The scientists collected five different types of water samples.
Type of Water Sample	Number of Water Samples Collected
Streamflow (collected at the outlets)	1,342
Snowmelt	83
Soil Water	803
Spring Water	1
Groundwater (collected from drinking water wells)	10
Total Samples Collected	2,239

The scientists used math to analyze the chemical characteristics of the water. This analysis enabled them to compare the water samples collected away from the streams
with the streamflow samples collected at each catchment’s outlet. This procedure enabled the scientists to compare the chemical content of the water samples and to identify how much snowmelt and rainwater contributed to each stream.

Number Crunches

Reflection Section

Findings

The scientists found that during the study period, over 60 percent of the streamflow came from water flowing underground (table 3). Snowmelt and rainwater moved rapidly through the soil to streams following a snowfall or rainfall. This rapid movement of groundwater to streams was likely due to the shallowness of the bedrock in this region of the Sierra Nevada.

Table 3. The percentage of streamflow coming from underground water in each of the eight small catchments.
Watershed	Percent of Streamflow Coming From Underground Water
1	63
2	61
3	69
4	66
5	42
6	65
7	60
8	66

Soil water above the water table (interflow) did not contribute much water to the streamflow. This finding was consistent with other studies that have found that soil water within 1 meter of the soil surface is taken up by trees and used for transpiration (tran(t) spə rā shən) (figure 16).

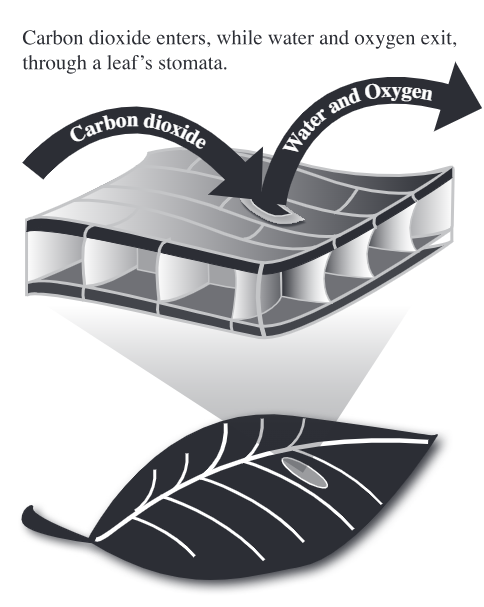

An illustration showing how Carbon dioxide enters a plant and water and oxygen leave

Figure 16. Transpiration involves the flow of water into tree roots, up tree trunks, into branches, and out through pores in tree leaves. Illustrations by Stephanie Pfeiffer and Nickola Dudley (inset).

The scientists found that the proportion of groundwater contributing to streamflow compared with surface flow was about the same for snowmelt water and rainwater.

Number Crunches

Reflection Section

Discussion

The scientists guessed that the shallow bedrock in this region contains large depressions. These depressions are like dimples in the bedrock. The depressions hold groundwater. Following a rainfall or snowfall, water percolates downward and the depressions fill up and spill over. Water then runs along the bedrock underground and into streambeds.

The total amount of streamflow coming from groundwater originating from snow and rain was about the same. The scientists expect, therefore, that a lower percentage of snowfall and a greater percentage of rainfall in the future will not affect streamflow in the higher elevation catchments.

Reflection Section

Adapted from Liu, F.; Hunsaker, C.; Bales, R.C. 2012. Controls of streamflow generation in small catchments across the snow—rain transition in the Southern Sierra Nevada, California. Hydrological Process, published online in Wiley Online Library, DOI: 10-1002/hyp.9304, http://www.fs.fed.us/psw/publications/hunsaker/psw_2012_hunsaker002_lui.pdf.
