How Now Round Crown? Predicting the Energy Future of Tree Crowns

Pine trees cover much of the Southeastern United States. When older pine trees are cut for making wood products, only the trees’ boles are used. The scientists in this study wondered if there might be a use for the trees’ crowns as well. In particular, they wondered whether the trees’ crowns might one day be a source of energy.

How Now Round Crown? Predicting the Energy Future of Tree Crowns

Meet the Scientists

Andy Scott

Soil Scientist

Tom Dean

Soil Scientist

Thinking About Science

Scientists try to solve problems that are important to society. In some cases, scientists try to solve problems before they are even recognized
as problems. In this study, for example, the scientists were aware that energy prices were continuing to rise. They reasoned that, at some point, it might become economically possible to use tree crowns for wood energy in the Southeastern United States (figure 1). The scientists developed a study to better understand how much energy is available from tree crowns. As you can see, science is not just about solving today’s problems. Scientists also look into the future and anticipate future problems that may need to be solved.

The top of a tree — **Figure 1**. A tree crown.

Thinking About the Environment

Trees are a valuable resource for the planet. They help to keep the air clean and hold soil in place. Trees absorb and hold carbon to reduce global climate change. They provide homes for animals and other plants. Trees are also renewable, meaning they can be planted, grown, and used for human needs. Some forests are planted and managed to eventually be used for wood products. Examples of wood products include furniture, lumber, and plywood.

When a forest is cut down to be used for wood products, only the tree’s trunk is used. Foresters call the tree’s trunk its bole. The rest of the tree, which is mostly the tree’s crown, is left behind. The crowns are usually piled and burned or left to decay (figure 2). In this way, the crown’s nutrients are returned to the soil to nourish the next generation of trees (figure 3).

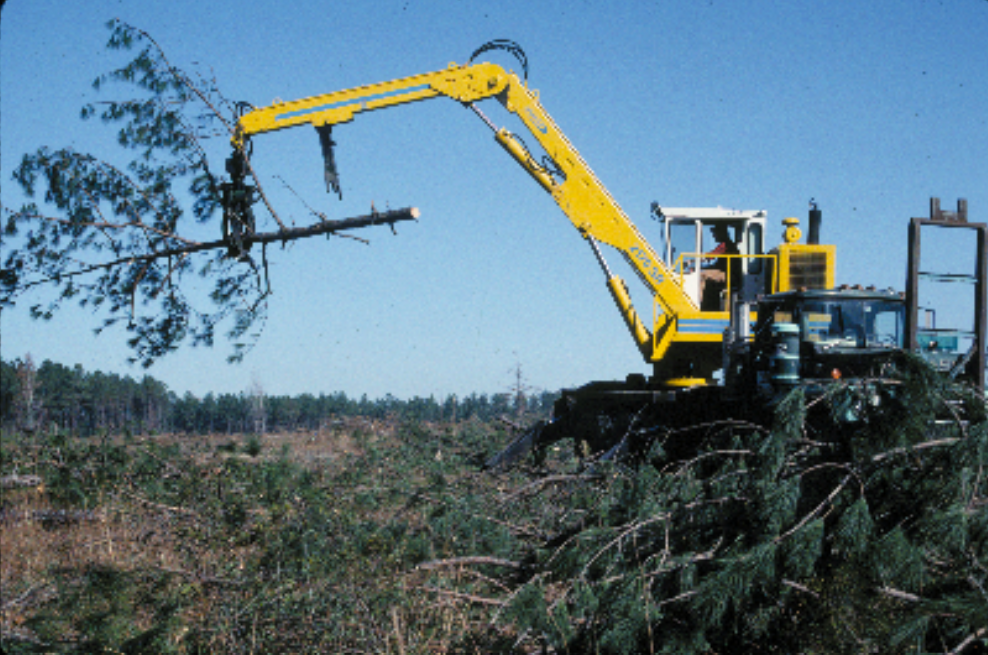

excavator clearing trees — **Figure 2**. Tree crowns piled together are called slash.

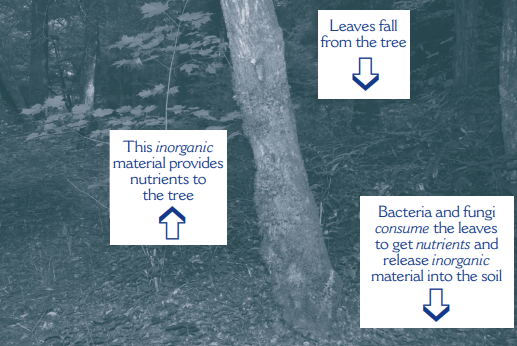

a graphic of a tree explaining how nutrients move through them — **Figure 3**. The movement of nutrients from trees to the soil. Most of the nutrients in a tree are stored in the crown. After a tree is cut or burned, the leafy crown and branch material is returned to the soil as it decays. The inorganic material comes from minerals.

Introduction

Pine trees cover much of the Southeastern United States (figure 4).

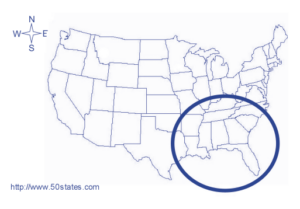

A map of the U.S. highlighting the southeastern portion — **Figure 4**. The Southeastern United States

When older pine trees are cut for making wood products, only the trees’ boles are used (figure 5). The scientists in this study wondered if there might be a use for the trees’ crowns as well. In particular, they wondered whether the trees’ crowns might one day be a source of energy. A tree’s crown can be cut into small pieces and used in a wood-burning furnace or converted to liquid fuels, such as ethanol.

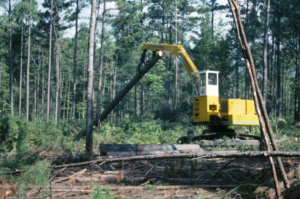

A large machine clearing trees in a forest — **Figure 5**. Only the boles of large southern pine trees are used for wood products.

Based on the scientists’ research, they estimated an average hectare of southern pine forest contains 968 megawatt hours (MWh) of energy stored in its wood. Of this 968 MWh of energy, 112 MWh are stored in tree crowns and 856 MWh of energy are stored in the boles. With over 36,000,000 hectares of southern pine forest, this amounts to a lot of stored energy.

After trees are cut, the crowns could be removed and burned to make energy. This also takes energy, however, as machines must be used to cut and haul the trees. Another thing to consider is that the crowns contain nutrients that should be returned to the soil. If the crowns are removed with the tree boles, the soil could become less healthy for the next generation of trees.

The scientists wanted to compare the amount of potential wood energy contained in southern pine tree crowns in three situations (figure 6). The first situation is when only the tree boles are removed from the area. The second situation is when entire trees are removed and tree crowns are used for energy. The third situation is a little more complicated. In this situation, whole trees are removed, the crowns are used for energy, and fertilizer is applied to the area to help new trees grow.

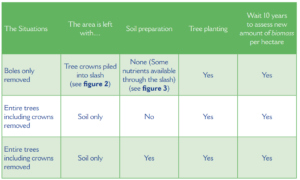

A chart describing the different conditions — **Figure 6**. The three situations compared by the scientists.

Reflection Section

Method

The average amount of energy contained in a hectare of southern pine forest had already been calculated by other scientists. As well, the amount of energy used when fertilizer is produced, packaged, transported, and applied had been calculated earlier by other scientists (table 1). The scientists in this study were able to use this information without having to calculate it themselves. This is similar to what you do when you use information from the Internet, the library, or other source.

Table 1. Amount of energy in megawatt hours contained in a megagram (Mg) of forest biomass; and amount of energy needed to produce, package, transport, and apply 1 kilogram (kg) of phosphorus and nitrogen fertilizer.
Amount of energy contained in a Mg of forest biomass	5.64 MWh
Amount of energy used to produce, package, transport, and apply 1 kg of nitrogen fertilizer	0.0021 MWh
Amount of energy used to produce, package, transport, and apply 1 kg of nitrogen fertilizer	0.022 MWh

The scientists identified an area of forest with 37-year-old southern pines on the Kisatchie National Forest in Louisiana (figure 6b). The size of the area was 0.6 hectares. First, they divided the area into three experimental plots. Each plot was the same size.

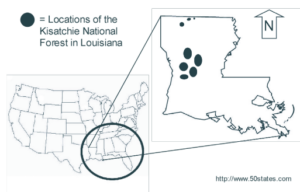

A U.S. map highlighting Louisiana — **Figure 6b**. Locations of the Kisatchie National Forest in Louisiana.

Number Crunches

The scientists calculated how much energy, measured in megawatt hours, is contained in the crowns of the three plots. They assumed each of the plots were equal in the amount of energy they contained.

The scientists then arranged to have the trees cut and removed (figure 7).

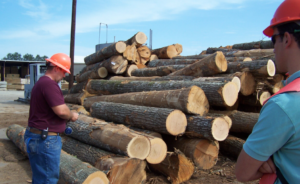

Trunks of cut trees — **Figure 7**. The scientists arranged to have the
trees cut.

In the first plot, only the boles were removed. The tree crowns were left on the ground. In the second two plots, entire trees, including the crowns, were removed. They applied fertilizer to the third plot. Then, they planted seedlings on all three plots so that a new generation of trees could grow (figures 8 and 9).

A tree sappling in the grass — **Figure 8**. Seedlings were planted on all three plots.

Trees growing in a froest — **Figure 9**. Over time a new generation of trees were allowed to grow.

The scientists calculated how much energy was used to acquire and apply nitrogen and phosphorus fertilizers to the third plot. Then, the scientists waited 10 years. At the end of the 10 years, the scientists calculated how much energy might be available in the tree crowns growing on each of the three plots. They added the amount of energy available in crowns before the trees were cut with what they calculated was available in tree crowns after 10 years of growth.

Reflection Section

Findings

The results of the experiment are shown in table 2.

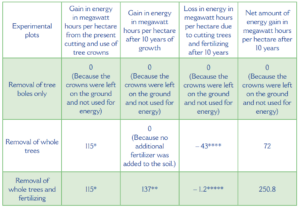

A table showing Amount of biomass and energy used in each of the plots. — **Table 2**. Amount of biomass and energy used in each of the plots. See key below.

The last column of table 2 is the most important. The scientists discovered that fertilizing the soil after cutting trees and removing the whole tree is a good way to ensure a higher energy potential in tree crowns after 10 years. Some scientists previously thought that the energy it takes to fertilize might not pay off in potential energy gains.

Key to Table 2
* Remember the scientists assumed that all plots started with the same amount of energy in their tree crowns that might one day be used.

** This number represents the gain in energy potential in the tree crowns after 10 years of growth. The gain is a result of adding fertilizer to the soil after cutting the trees and before planting new trees.

**** This number represents a loss in energy potential. This loss is caused because the trees did not grow as large as they could have. They did not grow as large because the crowns were removed from the site after the
trees were cut. Remember that the crowns provide some nutrients to the soil that help trees grow.

***** This number represents the loss of energy caused by having to package, transport, and apply the fertilizer.

Reflection Section

Discussion

This study focused on southern pine forests. Forest managers believed that on southern soils, the energy used to apply fertilizer would be greater than future gain in energy from tree crowns. This research shows the gains in potential energy are greater than the energy used to fertilize soil before planting trees.

The scientists will do their calculations again when the trees are 25 years old. When the trees are 25 years old, the scientists will cut the trees and measure how much energy is contained in the tree crowns. They will do
this for all three plots. At that time, they will again compare energy gain with energy used to fertilize the soil.

Reflection Section

From: Scott, D. A. and Dean, T. J. (2006). Energy trade-offs between intensive biomass utilization, site productivity loss, and ameliorative treatments in loblolly pine plantations. Biomass and Bioenergy 30, pp. 1001- 1010. http://www.srs.fs.usda.gov/pubs/ja/ja_scott007.pdf.
